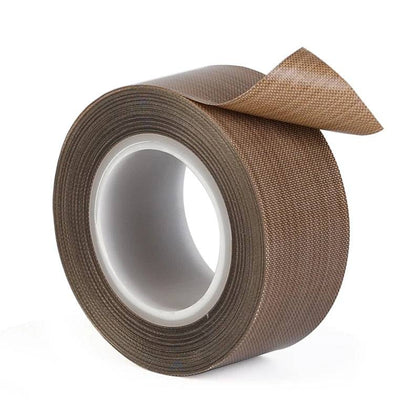

Skived PTFE Tape 5 Mil, Silicone Adhesive - 36 yards, High Temp Resistant for Heat Sealing Bars and Jaws, SPTFE5

Original price $17.04 - Original price $173.76
Original price
$17.04

(0 / Rolls Per Case)

$17.04 - $173.76
Current price $17.04
Size: 1/4 inch

Have questions about this product ?

+1 786 565 9858

Original price $17.04 - Original price $173.76
Original price
$17.04

(0 / Rolls Per Case)

$17.04 - $173.76
Current price $17.04

Specifications for this item

Product Code SPTFE5-PAElogation 2
Material Skived PTFECertification AA-59474 Type-1, Superseding 23594C Type 1
Adhesive Silicone Low Temperature N/A
Thickness 7.2 Mil High Temperature 500 F
Length 36 Yards Core 3 inch
Adhesion 30 oz/inAdhesive Side Single Sided
Tensile Strenght 15 lbs/in
Product Code SPTFE5-PA
Material Skived PTFE
Adhesive Silicone
Thickness 7.2 Mil
Length 36 Yards
Adhesion 30 oz/in
Tensile Strenght 15 lbs/in
Elogation 2
Certification AA-59474 Type-1, Superseding 23594C Type 1
Low Temperature N/A
High Temperature 500 F
Core 3 inch
Adhesive Side Single Sided

Skived PTFE Film Silicone Adhesive Tape

Product Description

Our skived film backing provides good conformability when unwound from the roll compared to typical extruded PTFE film tapes. We developed this tape as a quick and easy solution to reduce friction between moving surfaces. It functions as an anti-stick or easy-release medium between surfaces where pressure, temperature changes and other factors may create a measure of adhesion. Applying WOD PTFE Skived Film Tape SPTFE5 can help improve surface movement, eliminate squeaks and rattles, and reduce machine noise. PTFE is chemical resistant and can be used as a temporary chemical barrier. The tape has a wide temperature use range, from -100°F/-73°C to 500°F/260°C, making it suitable in a wide variety of applications.

WOD SPTFE5 Skived Teflon Tape is a 5 mil pure skived Teflon™ (PTFE film) tape with a high temperature silicone adhesive. It comes self-wound without a liner. Used in electrical applications such as harness / coil wraps & separators, transformers and slot liners where good insulation and heat resistance are required.

WOD SPTFE5 is used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip and lubricity are required. High elongation permits tight wrapping and conforms to sharp bends/irregular surfaces.

Skived Film Tape SPTFE5 uses a skived, polytetrafluoroethylene (PTFE), conformable film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of web materials in many types of roll-wrap applications.

Product Applications

  • Used for Squeak and noise reduction, Shielding and protecting against chemicals, and Mold release for composite bonding
  • Used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip, and lubricity are required.
  • Used in electrical applications such as harness/coil wraps & separators, transformers & slot liners where good insulation & heat resistance are required.
  • Anti-stick tape for wrapping rollers, plates, belts or other parts where buildup can occur.
  • Used primarily in electrical appliances such as coil wraps and separators, transformer, slot liners and harness wrapping where good insulation and heat resistance are needed
  • Used in mechanical applications requiring high temperature resistance and a non-stick surface such as roll protection in flat die extrusion.

Technical Properties

  • Adhesive: Silicone
  • Carrier/Backing: polytetrafluoroethylene (PTFE) film / pure skived Teflon
  • Thickness: 7.2 mils (carrier, adhesive)
  • Adhesion: 30 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 15 pounds per inch (longitudinal)
  • Dielectric Strength: 12,000 volts
  • Elongation: 200%
  • Service/Operating Temperature: -100°F to 500°F
  • Core: 3" Diameter

Additional Information

Alternative to: 3M 5481; Permacel P421; DeWal 204-5; Saint Gobain 2255-5; Taconic 6115-05; Lanmar 585-5; Bondtec 932F

Note: Specifications are those given by manufacturers and are not tested for accuracy.
