Lead Foil Tape for Golf and Tennis Racquets - 36 yards - LFT5A

by WOD Tape

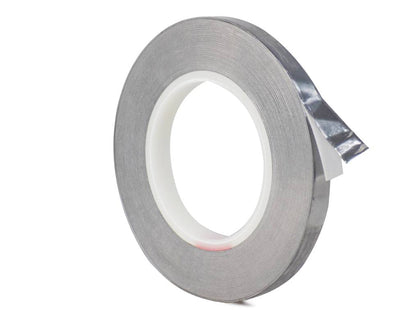

Lead weight tape roll
Request a FREE Sample

$42.96 - $2,984.00
$42.96

1 unit(s)

Unit Price:

$42.96 - $2,984.00
$42.96
Size: 1/4 inch
Adhesive: Acrylic
Quantity: Roll
SKU: WOD LFT5A-00250-1-36-SIL

$42.96 - $2,984.00
$42.96

1 unit(s)

Unit Price:

$42.96 - $2,984.00
$42.96
SKU: WOD LFT5A-00250-1-36-SIL

Specifications for this item

Product Code LFT5-PA Elogation 0.15
Material Lead Foil Certification Fed. Spec HH-T-0029
Adhesive Acrylic and Rubber Low Temperature -30 F
Thickness 6 Mil High Temperature 275 F
Length 36 Yards Core 3 inch
Adhesion 35 oz/in Adhesive Side Single Sided
Tensile Strenght 18 lbs/in
Product Code LFT5-PA
Material Lead Foil
Adhesive Acrylic and Rubber
Thickness 6 Mil
Length 36 Yards
Adhesion 35 oz/in
Tensile Strenght 18 lbs/in
Elogation 0.15
Certification Fed. Spec HH-T-0029
Low Temperature -30 F
High Temperature 275 F
Core 3 inch
Adhesive Side Single Sided
Request a FREE Sample

Lead Foil Tape with Acrylic Adhesive

Product Description

WOD LFT5A Lead Foil Tape is a 100% pure lead foil which is highly malleable and can be shaped to the most intricate patterns. Coated with a specially designed aggressive acrylic adhesive system which is weather, solvent and heat resistant. Used for sealing double-paned windows; decorative leaded windows, radiation/ x-ray shielding; and as a vapor barrier and mask for electroplating. Comes on a paper release liner.

Product Applications

  • Used for sealing double-paned windows
  • Radiation barrier, x-ray shielding
  • Masking x-ray plates, electroplating, and chemical milling
  • Decorative leaded windows.

Technical Properties

  • Adhesive: Acrylic
  • Carrier/Backing: Lead foil
  • Release Liner: Paper
  • Thickness: 6 mils (carrier)
  • Adhesion: 35 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 18 pounds per inch (longitudinal)
  • Service/Operating Temperature: -30 F to 275 F
  • Elongation: 15%
  • Specification Met: Fed. Spec HH-T-0029, Amendment 2.
  • Core: 3" Diameter

Additional Information

Alternative to: 3M 34201 & 420; Lamart 245L; 245L-R.

Note: Specifications are those given by manufacturers and are not tested for accuracy.
