Fiberglass Cloth Electrical Tape - 36 yards, High Temperature - GCMT76

by WOD Tape

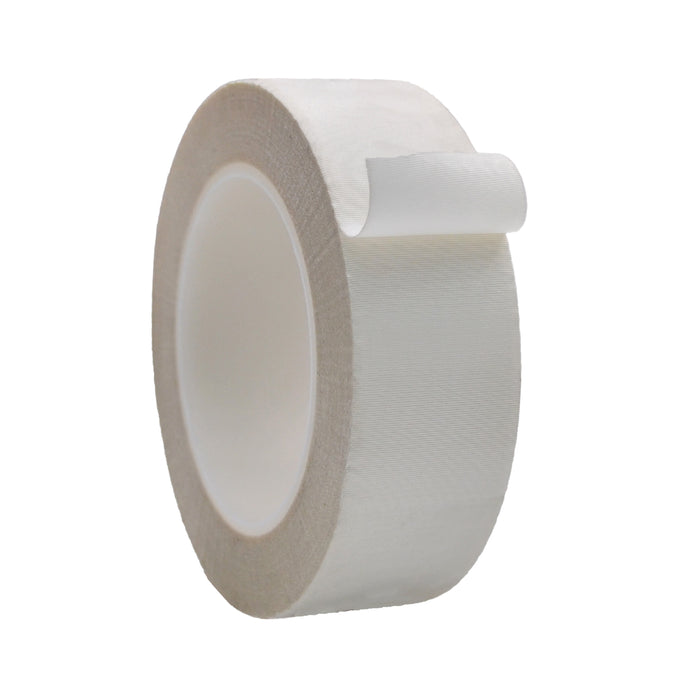

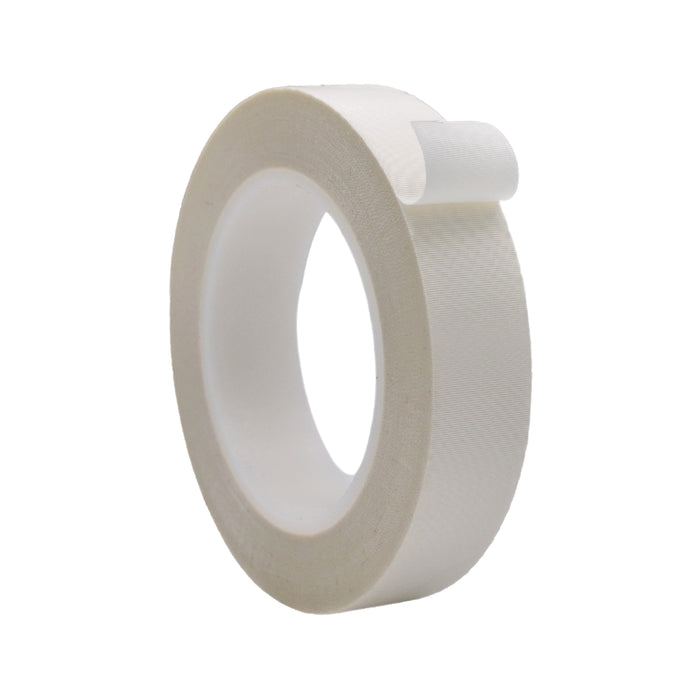

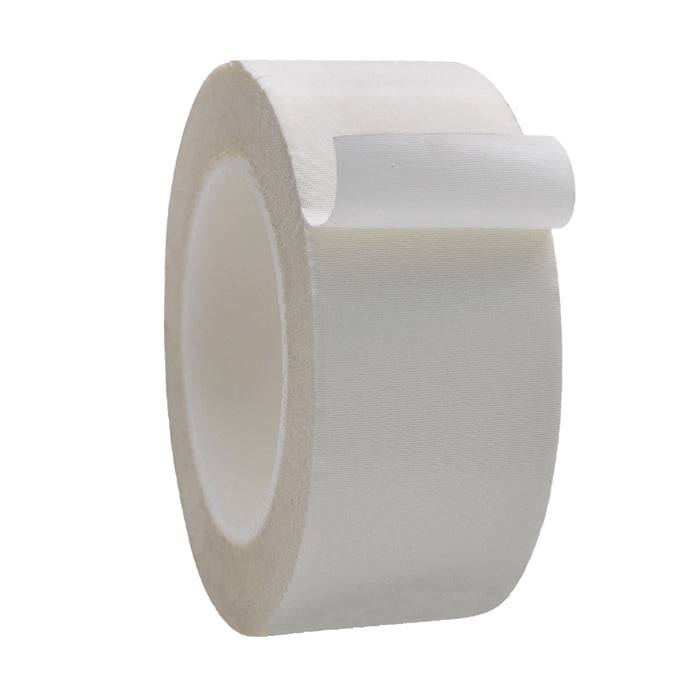

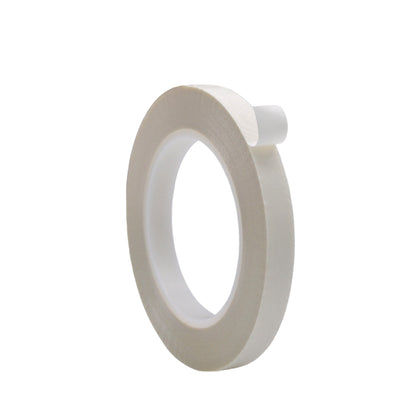

close up of cloth electrical tape 1/2 inch wide
Request a FREE Sample

$12.27 - $1,177.87
$1,029.60
$12.27

1 unit(s)

Unit Price:

$12.27 - $906.05
$12.27
Size: 1/2 inch
Quantity: Roll
SKU: WOD GCMT76-00500-1-36-WHI

$12.27 - $1,177.87
$1,029.60
$12.27

1 unit(s)

Unit Price:

$12.27 - $906.05
$12.27
SKU: WOD GCMT76-00500-1-36-WHI

Specifications for this item

Product Code GCMT76-PA Elogation 0.1
Material Glass Cloth Certification UL 510, UL Class H, MIL-I-19166C, Type 7, FAR25853
Adhesive Silicone Low Temperature '-100 F
Thickness 7.6 Mil High Temperature 500 F
Length 36 Yards Core 3 inch
Adhesion 35 oz/in Adhesive Side Single Sided
Tensile Strenght 140 lbs/in
Product Code GCMT76-PA
Material Glass Cloth
Adhesive Silicone
Thickness 7.6 Mil
Length 36 Yards
Adhesion 35 oz/in
Tensile Strenght 140 lbs/in
Elogation 0.1
Certification UL 510, UL Class H, MIL-I-19166C, Type 7, FAR25853
Low Temperature '-100 F
High Temperature 500 F
Core 3 inch
Adhesive Side Single Sided
Request a FREE Sample

Glass Cloth Electrical Pressure Sensitive Tape is coated with silicone adhesive and is conformable, printable, and chemical & solvent resistant. White glass cloth tape with a high-temperature thermosetting silicone adhesive. The thermosetting adhesive provides an increased bond once applied in areas of high ambient temperatures.

WOD GCMT76 Tape is UL approval insulation recognized for continuous use up to 200 C Class H. It conforms to Military Specification No. MIL-I-19166C. Designed for use in strategic area masking of areas in thermal and plasma spray applications. Used for insulation of electrical apparatus, coil wrap, and for sealing and bundling of non-electrical applications where flame retardancy or high heat resistance is required (e.g. welding).

Shop by the case and save up to 30% on price per roll!

Product Applications

  • Edge-tear resistant conformable, high-temperature flame resistant
  • For use as a coil cover, anchor, banding and core, layer and crossover insulation
  • Reinsulating and repairing coils on mining machines
  • Securing Scotch 77 Fire Retardant Electric Arc Proofing Tape
  • Insulating Class dry-type transformer leads.
  • Insulating electric and induction type furnace power supply leads.
  • Securing high temperature, non-PSA insulations (such as asbestos and glass) in high temperature areas.
  • Replacing 3M 27 Glass Cloth Electrical Tape in locations where a higher-temperature tape is needed.
  • Reinforcing insulation in electrical installations where heavy loads cause high heat and breakdown of original insulation (e.g. motor control exciter feeds).
  • Splicing silicone-covered glass wire where splices require more abrasion resistance and mechanical strength than can be provided by silicone tapes.

Technical Properties

  • Adhesive: Silicone
  • Carrier/Backing: Glass Cloth
  • Thickness: 7.6 mils (carrier, adhesive)
  • Adhesion: 35 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 140 pounds per inch (longitudinal)
  • Elongation: 10%
  • Specification Met: MIL-I-19166C Type 7; UL510 Insulation Class: 200C Class H
  • Service/Operating Temperature: -100 F to 500 F
  • Dielectric Strength: 3500 volts
  • Core: 3" Diameter

Additional Information

Alternative to: TLC 907; 3M 69 & 361; T&F 3807; Greenbelt 160-5S; Permacel P212; IPG 4618 & RG48; Taconic 6605-07D-NL; Ideal IT-7300; St. Gobain/Furon 2915-7, G565 & G561; Chemfab 340-TS; Lanmar 715-7; Bondtec 832TH; Nitto 185; Scapa C401; AFC 380-07S; Dewal 469.

Note: Specifications are those given by manufacturers and are not tested for accuracy.

Specifications for this item

Product Code GCMT76-PA Elogation 0.1
Material Glass Cloth Certification UL 510, UL Class H, MIL-I-19166C, Type 7, FAR25853
Adhesive Silicone Low Temperature '-100 F
Thickness 7.6 Mil High Temperature 500 F
Length 36 Yards Core 3 inch
Adhesion 35 oz/in Adhesive Side Single Sided
Tensile Strenght 140 lbs/in
Product Code GCMT76-PA
Material Glass Cloth
Adhesive Silicone
Thickness 7.6 Mil
Length 36 Yards
Adhesion 35 oz/in
Tensile Strenght 140 lbs/in
Elogation 0.1
Certification UL 510, UL Class H, MIL-I-19166C, Type 7, FAR25853
Low Temperature '-100 F
High Temperature 500 F
Core 3 inch
Adhesive Side Single Sided
