Double Sided PE Foam Tape 1/16 inch Thick - DCPFT62

Original price $8.79 - Original price $861.98
Original price
$8.79 - $861.98
Current price $8.79
Size: 1/4 inch
Adhesive: Acrylic
Color: White
Original price $8.79 - Original price $861.98
Original price
$8.79 - $861.98
Current price $8.79

Specifications for this item

Product Code DCPFT62-PAElogation N/A
Material PE FoamCertification N/A
Adhesive Acrylic and Rubber Low Temperature N/A
Thickness 62 Mil High Temperature N/A F
Length 36 Yards Core 3 inch
Adhesion 55 oz/in (acrylic) - 59 oz/in (rubber)Adhesive Side Double Sided
Tensile Strenght N/A
Product Code DCPFT62-PA
Material PE Foam
Adhesive Acrylic and Rubber
Thickness 62 Mil
Length 36 Yards
Adhesion 55 oz/in (acrylic) - 59 oz/in (rubber)
Tensile Strenght N/A
Elogation N/A
Certification N/A
Low Temperature N/A
High Temperature N/A F
Core 3 inch
Adhesive Side Double Sided

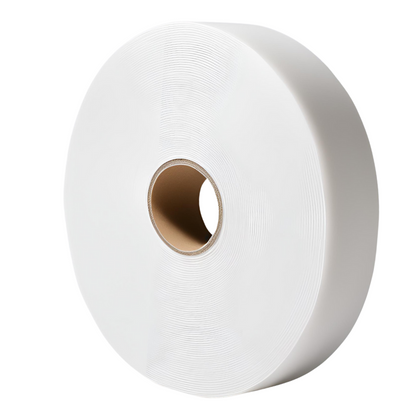

Double Sided Polyethylene Foam Tape

Product Description

WOD DCPFT62A Double Coated 1/16" Foam Tape is a closed cell cross-linked polyethylene foam tape coated on both sided with a high performance solvent based acrylic adhesive. Excellent quick-stick sealing with high shear properties for efficient operation and secure bonding. Good resistance to humidity, mild acids, oil and grease. Excellent conformability and compressibility. Adheres well to textured and irregular surfaces. The acrylic adhesive system is recommended for outdoor applications due to its higher temperature, UV, weather, chemical and plasticizer resistance.

Speed up the mounting process and achieve a more aesthetically pleasing installation with WOD Double Coated Polyethylene Foam Tape DCPFT62A. The polyethylene foam tape is known for its high ultimate adhesion and reliable performance across many surfaces. One of its noted features is its ability to conform to irregular substrates. It provides high ultimate adhesion to many plastics and is formulated for demanding indoor and outdoor general purpose mounting and bonding applications. Common uses include automotive mirror bonding, decorative trim, nameplates and other general purpose mounting applications.

Application Tips

  • Surfaces must be clean and free of oil, grease, moisture, dust and dirt. Isopropyl alcohol is good for cleaning the surface. Do not remove liner until tape is in proper position.
  • Avoid touching adhesive surface before application. The adhesive is intended for positioning during the assembly process. The foam tape is secured in the joint by compression of the adjacent substrates.
  • The application temperature should be between 40°F and 125°F (4°C to 52°C)

Product Applications

  • Great choice for interior and exterior mounting applications
  • Point-of-purchase displays and signs
  • Used for mounting nameplates, signs, small die cast parts, mirrors, maps, and more
  • Used for sound and vibration dampening in business machines, industrial equipment, electronic component packaging and glass panel mounts, seals, and gaskets

Technical Properties

  • Adhesive: Solvent Based Acrylic
  • Carrier/Backing: Cross-linked irradiated cellular polyethylene foam
  • Release Liner: 50 # white bi-siliconized paper
  • Thickness: 1/16" inch (carrier, adhesive)
  • Adhesion (1 min.): 55 ounces per inch (to stainless steel test panel)
  • Adhesion (24 hrs.): 73 ounces per inch (to stainless steel test panel)
  • Service/Operating Temperature: -4°F to 194°F
  • Density: 3 pounds per cubic foot
  • Shear: 168+ hours @ 1kg psi
  • Core: 3" Diameter

Additional Information

Alternative To: Venture 617, 716; Scapa SA416V, SR516V; IPG 8116; 3M 4446, 4496; Int’l Tape 316, 116, 116B, 416; Press-on P-3200R/A.

Note: Specifications are those given by manufacturers and are not tested for accuracy.
