Metalized Polyester Mylar Film Tape

Product Description

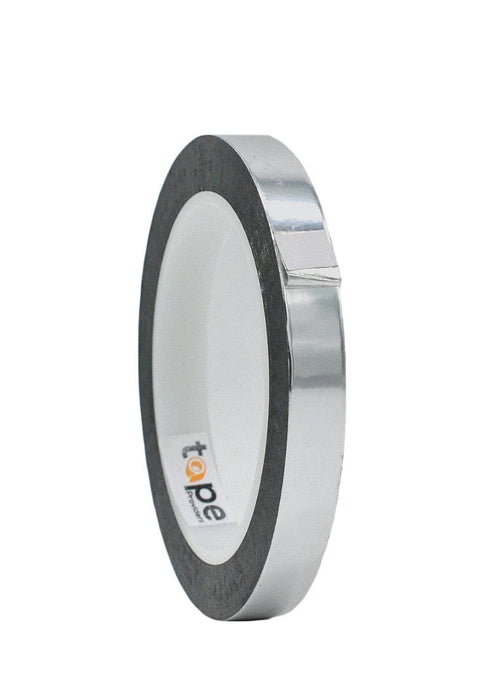

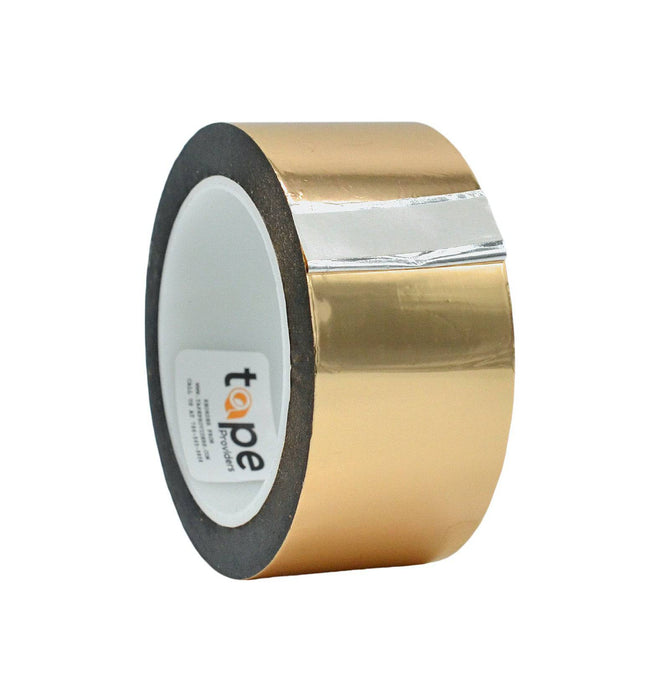

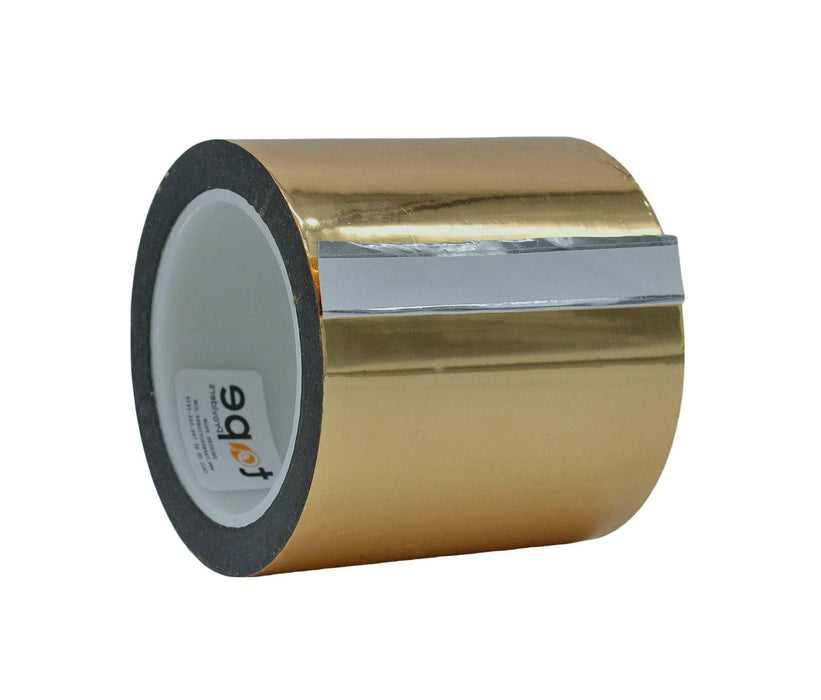

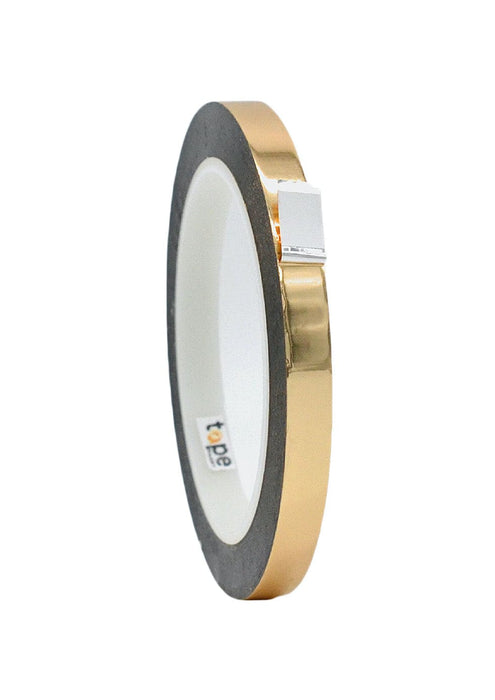

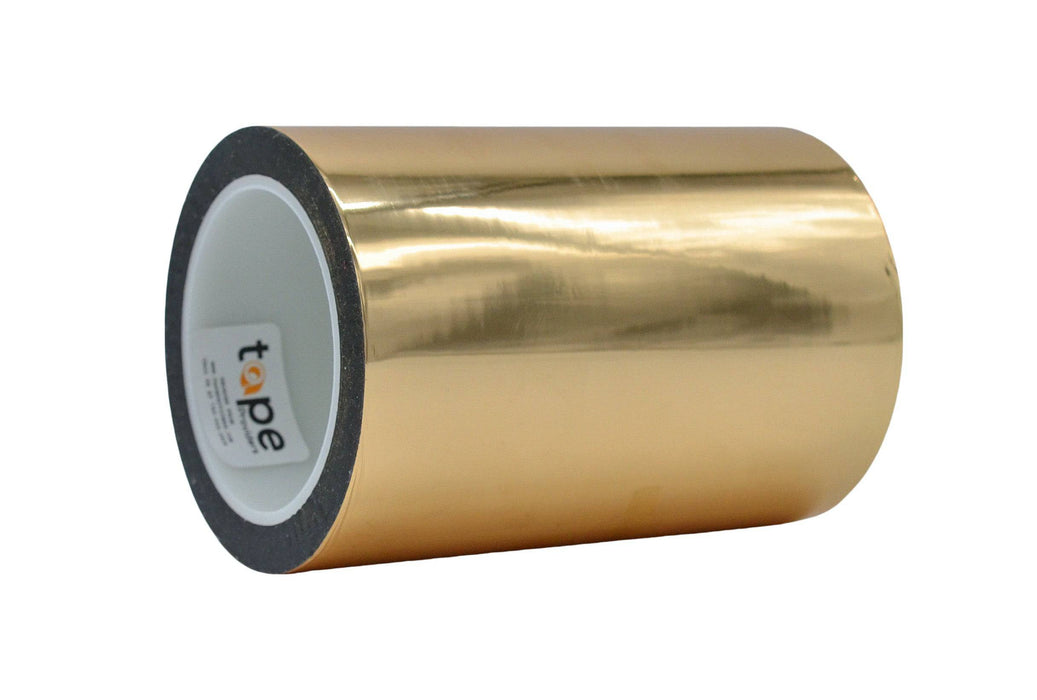

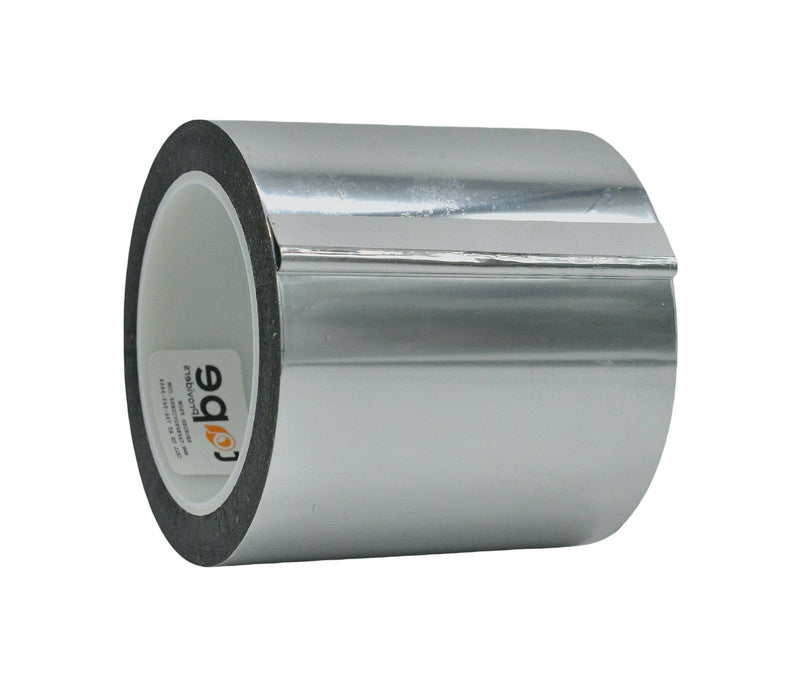

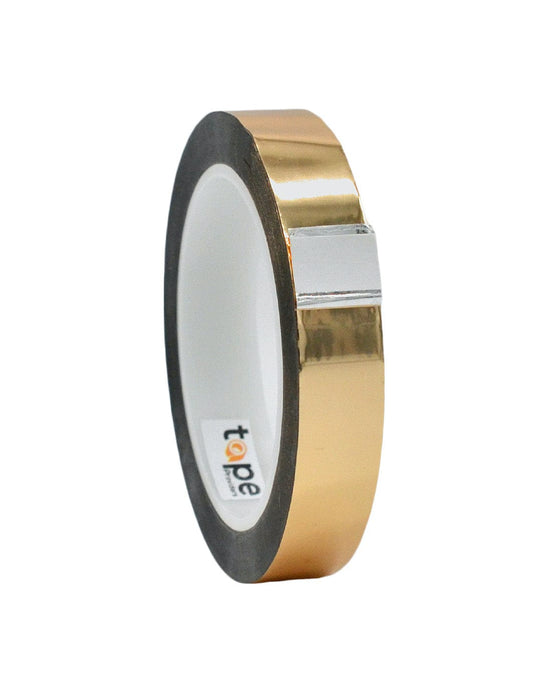

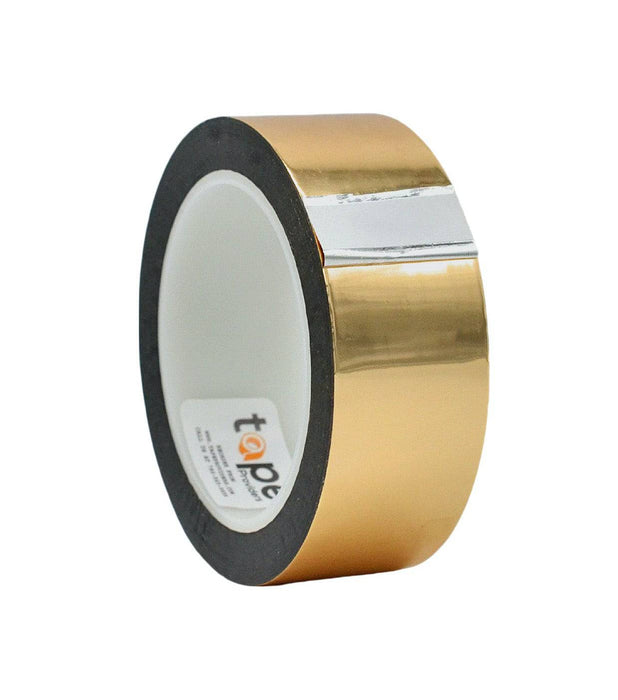

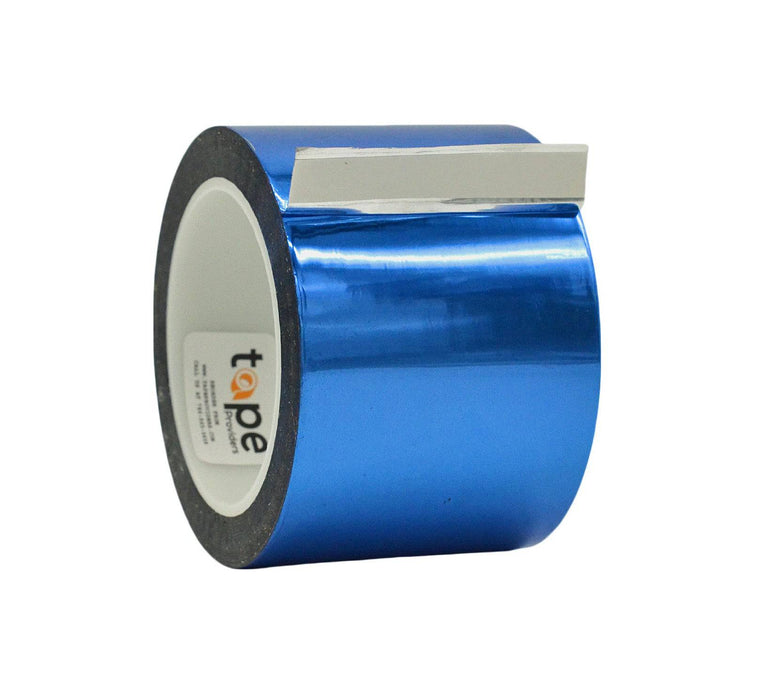

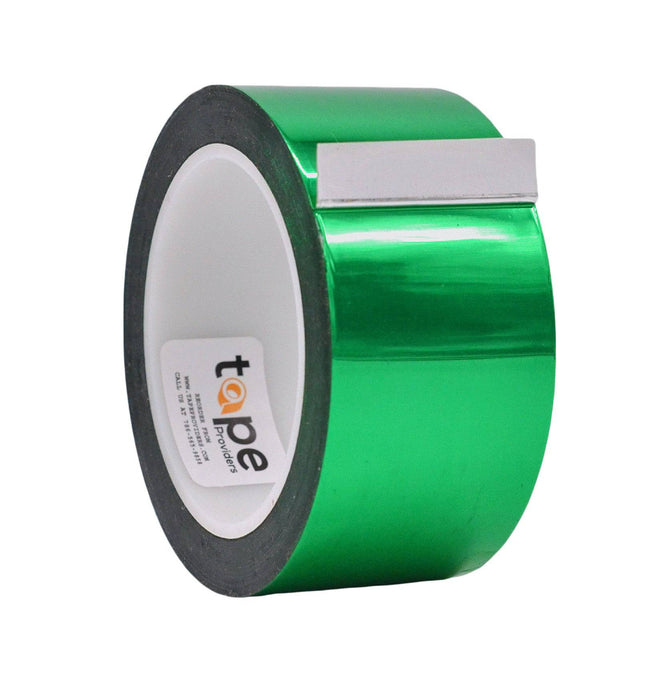

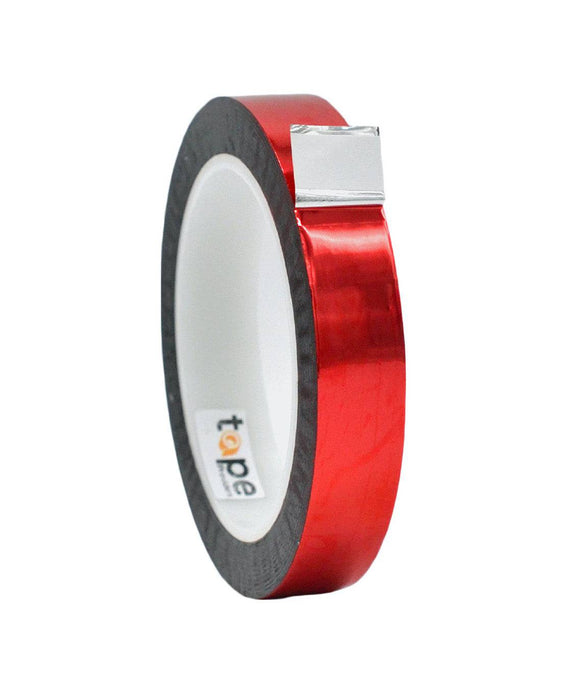

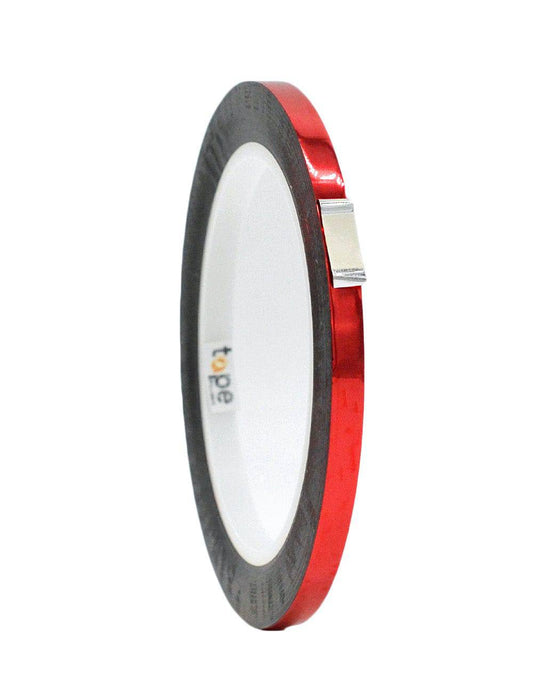

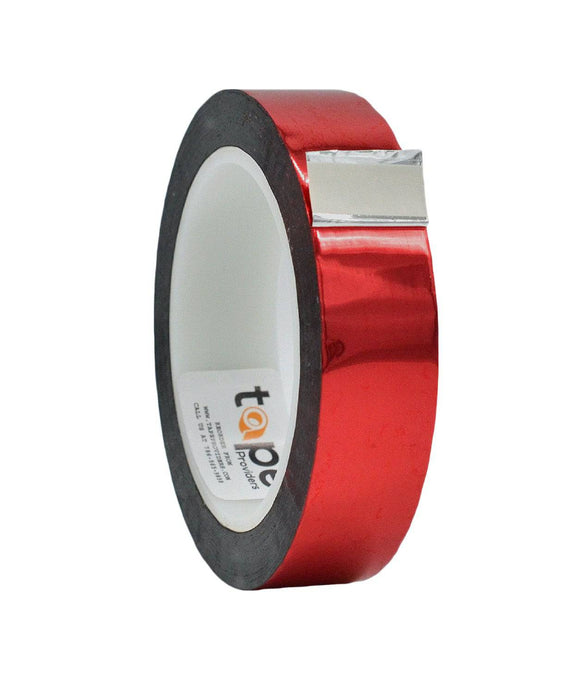

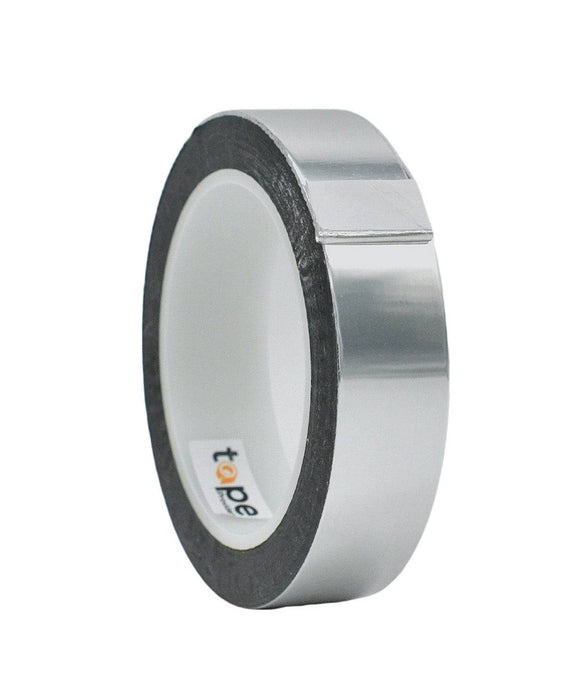

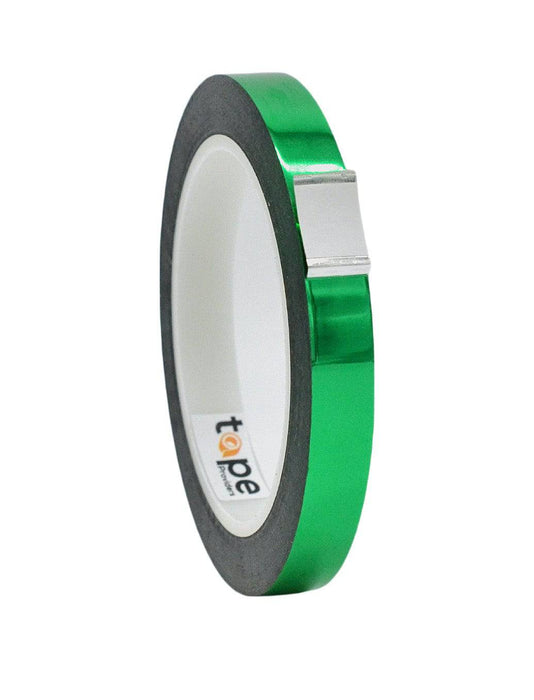

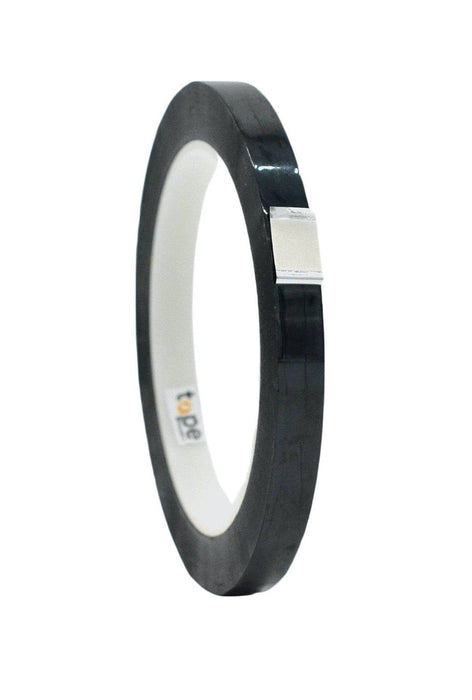

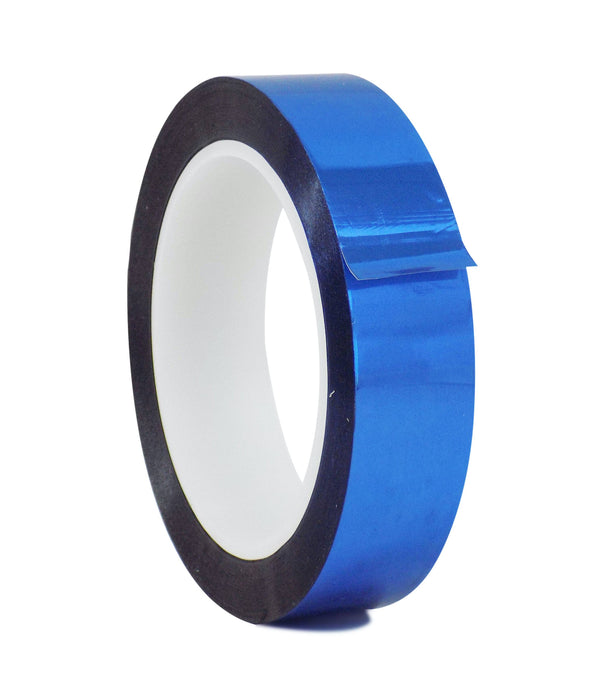

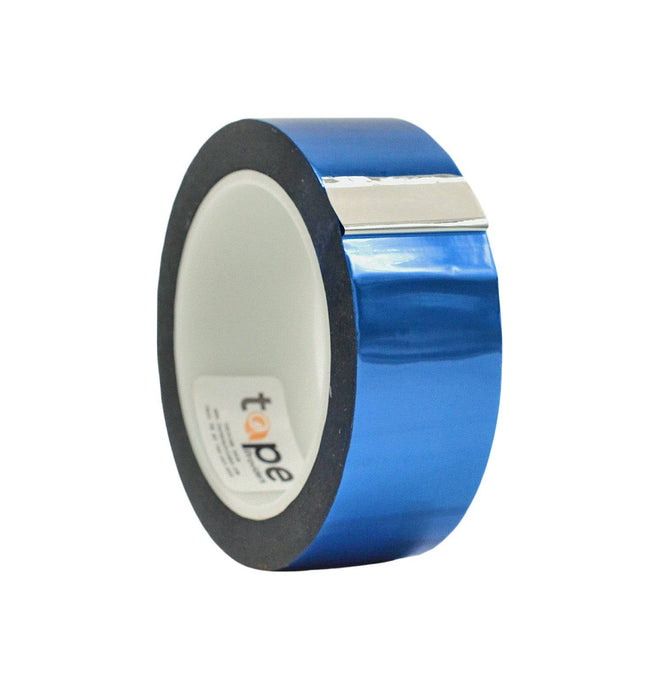

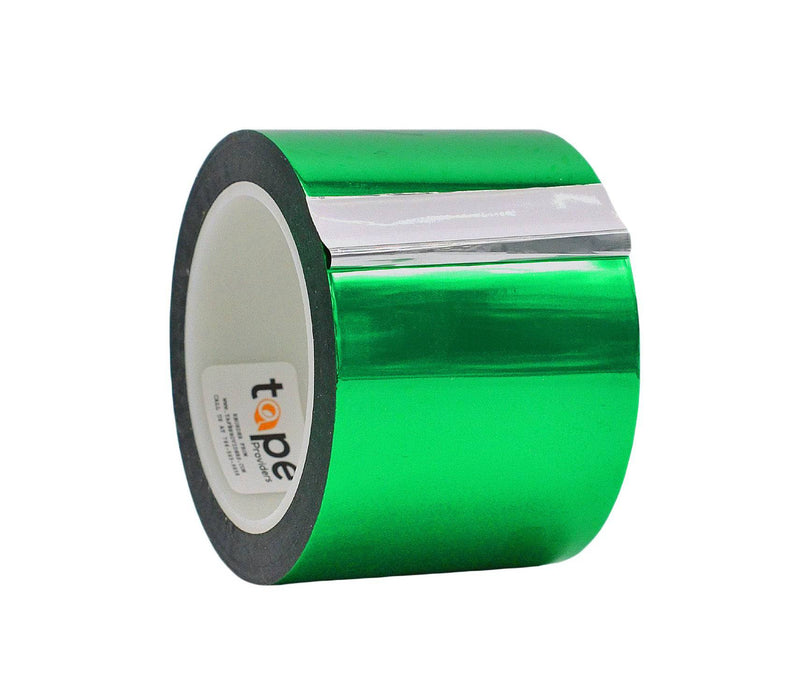

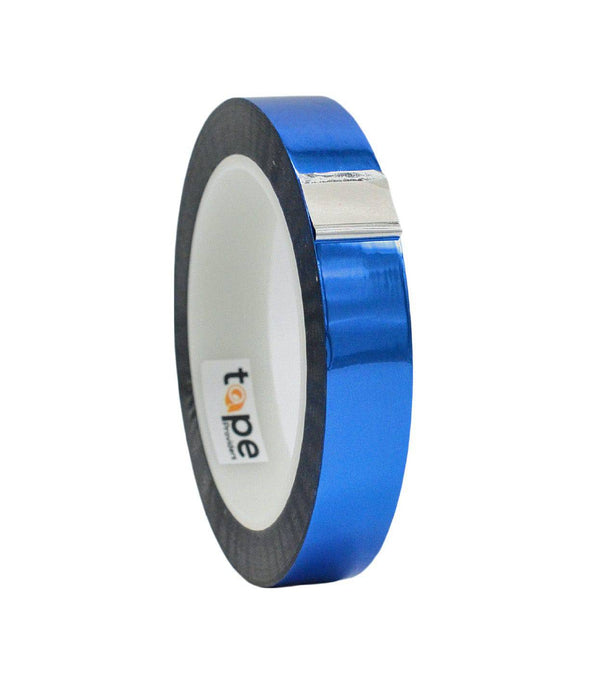

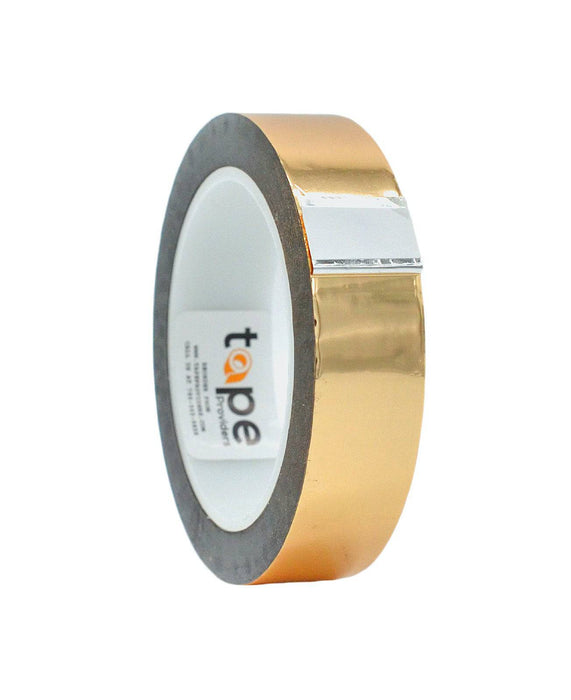

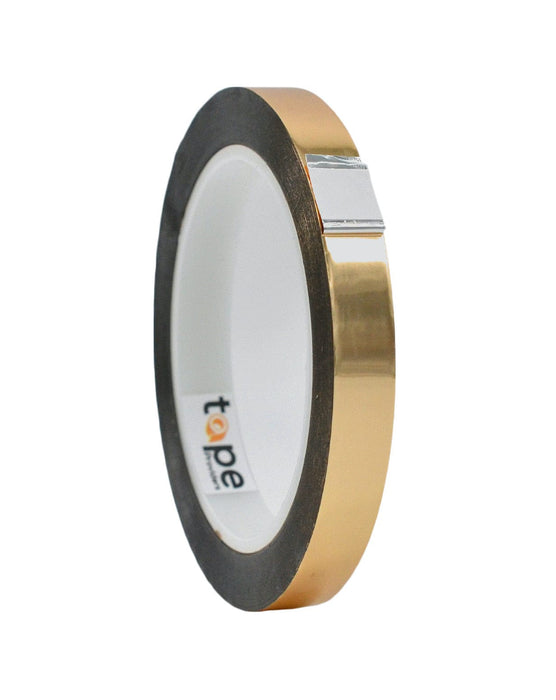

WOD MPFT1 Metalized Polyester Film Tape is a metallized (aluminized) polyester mylar film with a brilliant, vibrant mirror-like finish; coated with an aggressive long lasting clear acrylic adhesive system. Tapes have excellent chemical and thermal stability. Silver can be qualified to meet Federal Specification #L-T-100B, Type II. Gold is PVC-free and can be laser cut.

Our WOD Polyester Film Tape MPFT1 is generally used for splicing and web applications. The backing is a thin, high-strength polyester which is abrasion resistant to help reduce splice failures while resisting breakdowns during rough handling and web processing. Coated with an aggressive pressure sensitive acrylic adhesive, this tape grabs on contact and holds securely. It meets low-caliper requirements to ensure it won't interfere with most machinery. The tape can withstand temperatures up to 300°F/150°C.

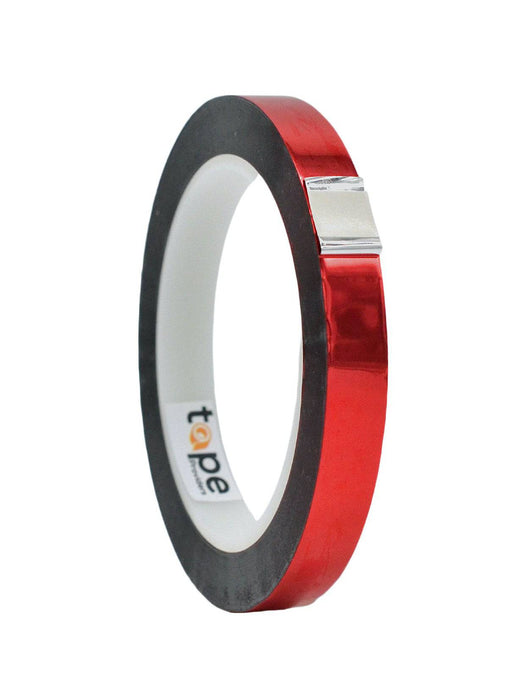

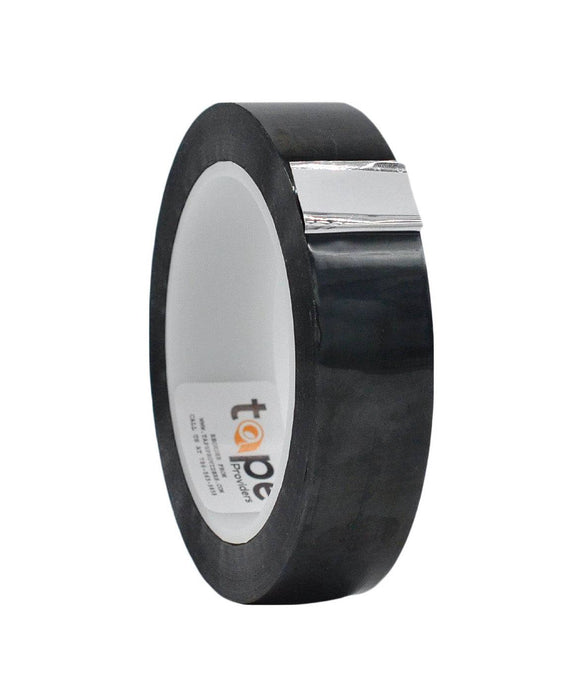

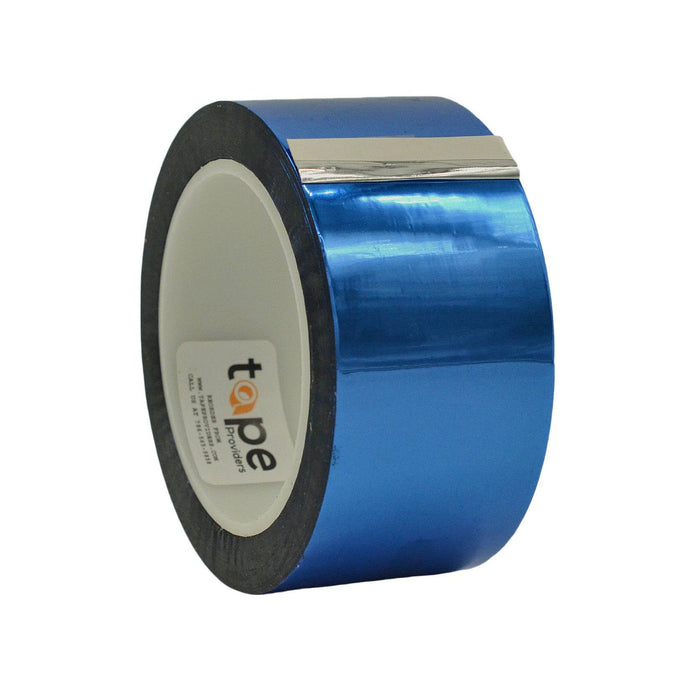

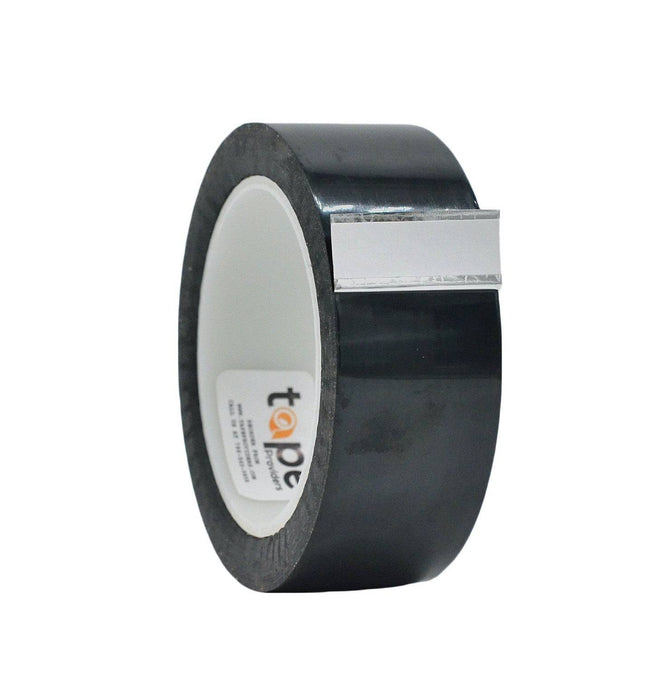

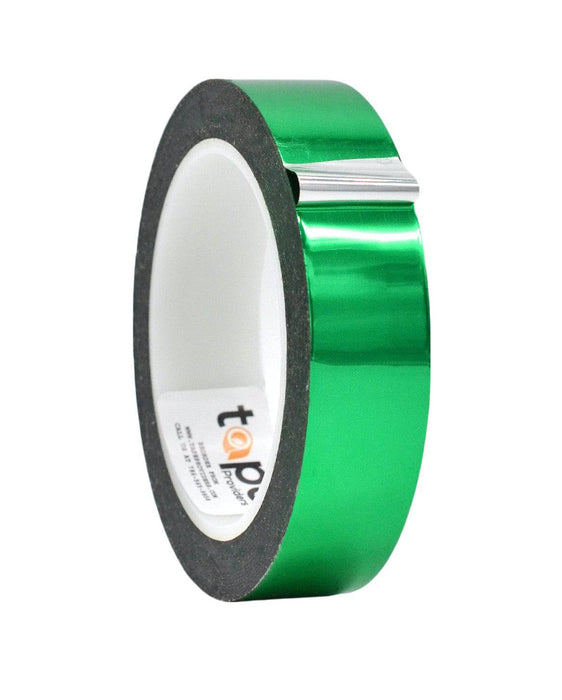

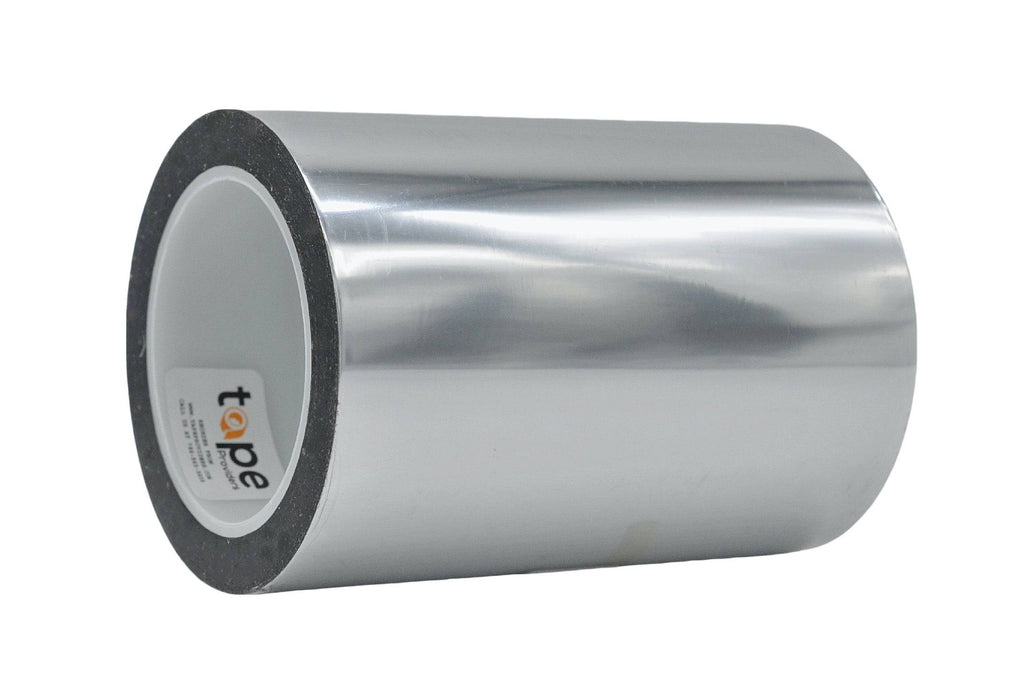

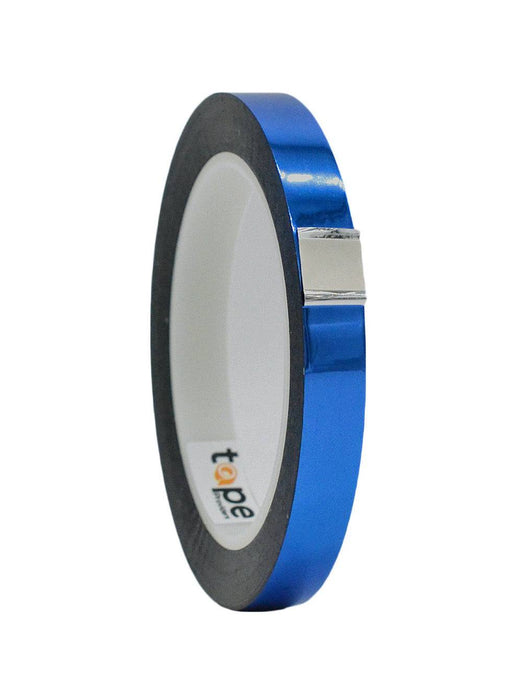

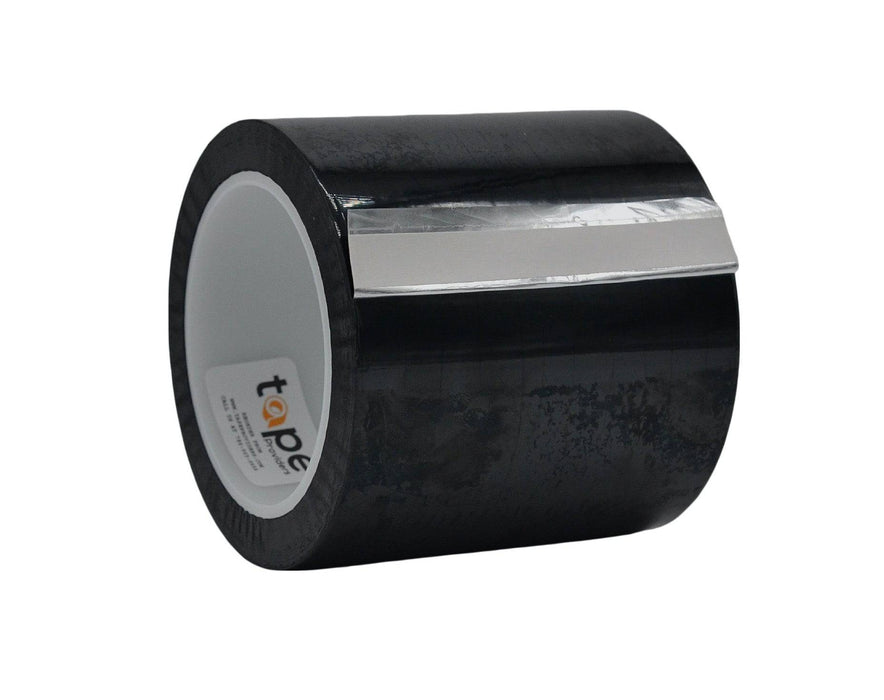

Metalized Polyester Film Tape is used for reflective shielding; industrial & graphic art applications; decorative trim, nameplates, electric appliances an and advertising displays. It is also suitable for micro film splicing and can be used in photo sensing applications to detect spices and to facilitate roll changeovers (should test first). The tape is self-wound (no release liner) and all colors of MPF-01 are silver on the exposed adhesive-side of the tape. WOD MPFT1 complies with the European RoHS 2002/95/EU, 2011/65/EU directives.

Product Applications

Used for crafts decorative striping and edging
For Splicing in high temperature situations, including infrared radiation
Used for splicing plastic coated wallpaper with embossed surfaces
Used for splicing leaders for photo development including movie film
used as sensor tape for proximity detector switches and optical detection switches
Repairing and fixing in screen printing process
Used in a variety of applications, including web processing, label protection, and marking

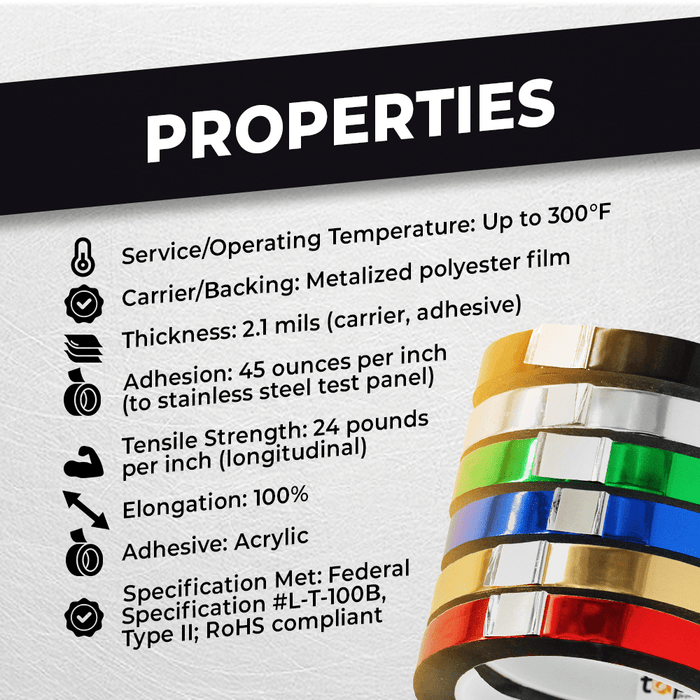

Technical Properties

Adhesive: Acrylic
Carrier/Backing: Metalized polyester film
Thickness: 2.1 mils (carrier, adhesive)
Adhesion: 45 ounces per inch (to stainless steel test panel)
Tensile Strength: 24 pounds per inch (longitudinal)
Service/Operating Temperature: Up to 300°F
Elongation: 100%
Specification Met: Federal Specification #L-T-100B, Type II; RoHS compliant
Core: 3" Diameter

Additional Information

Alternative to: 3M 850; Ideal 505; TLC CT941M; Achem MP50; Tesa 4137; Venture 1555CW; Saint Gobain/Furon MT150 & PS100; Specialty Tapes S298; Decker 136.

Note: Other colors available as special order. Call or E-mail us now for Details!

Note: Specifications are those given by manufacturers and are not tested for accuracy.
