Electrical Tape General Purpose Black - ETB7xx

Electrical Tape General Purpose Black - ETB7xx

by WOD Tape
$3.98 - $193.01
$6.99
$3.98 - $193.01
$6.99
Size: 3/8 inch
Length: 66 feet
$3.98 - $193.01
$6.99
$3.98 - $193.01
$6.99

Specifications for this item

Product Code ETB7xx-PAElogation 200%
Material Plasticized PVCCertification UL Listed
Adhesive Rubber Low Temperature N/A
Thickness 7 Mil High Temperature 176 F
Length 20 Yards Core 1.5 inch
Adhesion 14 oz/inAdhesive Side Single Sided
Tensile Strenght 16 lbs/in
Product Code ETB7xx-PA
Material Plasticized PVC
Adhesive Rubber
Thickness 7 Mil
Length 20 Yards
Adhesion 14 oz/in
Tensile Strenght 16 lbs/in
Elogation 200%
Certification UL Listed
Low Temperature N/A
High Temperature 176 F
Core 1.5 inch
Adhesive Side Single Sided

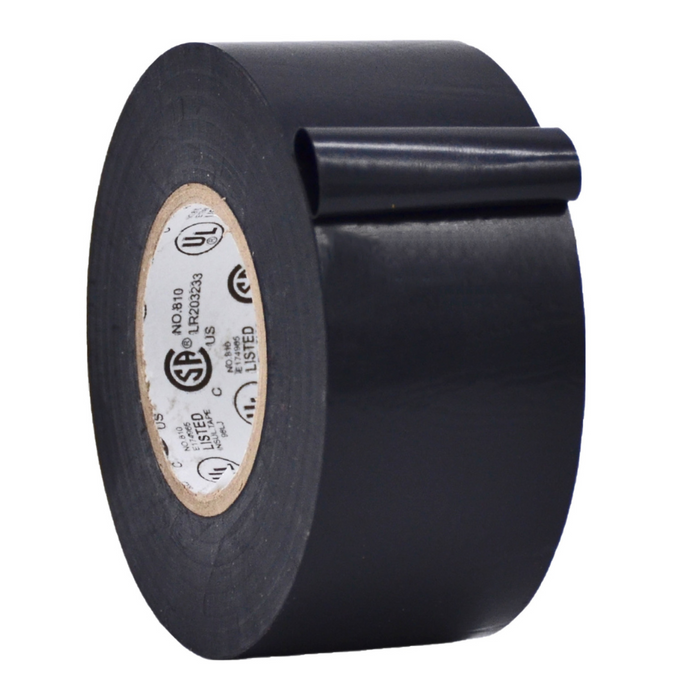

General Purpose Black Electrical Tape

WOD ETB7xx* Electrical Tape is a Plasticized PVC film premium grade with an aggressive rubber based adhesive in OSHA colors; It is a UL 1.5 in. listed core. Flame retardant and cold resistant.

9 Sizes Available:

3/8 inch - 1/2 inch - 3/4 inch - 1 inch - 1.5 inch - 2 inch - 3 inch - 4 inch - 49 inch

4 Lengths Available:

30 feet - 60 feet - 66 feet - 108 feet



For wire and cable insulation, bundling, primary splice insulation at no more than 600V. Non-flame retardant.

Technical Properties

  • Adhesive: Rubber Resin
  • Carrier/Backing: plasticized polyvinyl chloride (PVC) film
  • Thickness: 7 mils
  • Adhesion: 14 oz/in (to stainless steel test panel)
  • Tensile Strength: 16 lb/in
  • Elongation: 200%
  • Application Temperature: 32°F to 122°F
  • Service/Operating Temperature: 14°F to 176°F
  • Dielectrical Breakdown: 6KV
  • Certifications: UL listed
  • Core: 3" neutral core/carton

Alternative to: Permacel 220; IPG 6180; Tesa 4208; Berry Plastics Polyken 777.
Note: Specifications are those given by manufacturers and are not tested for accuracy.
