Permanent Transfer Tape 3000 Feet Reverse Wound with Extended Liner - PTT-EL-GSO

by WOD Tape

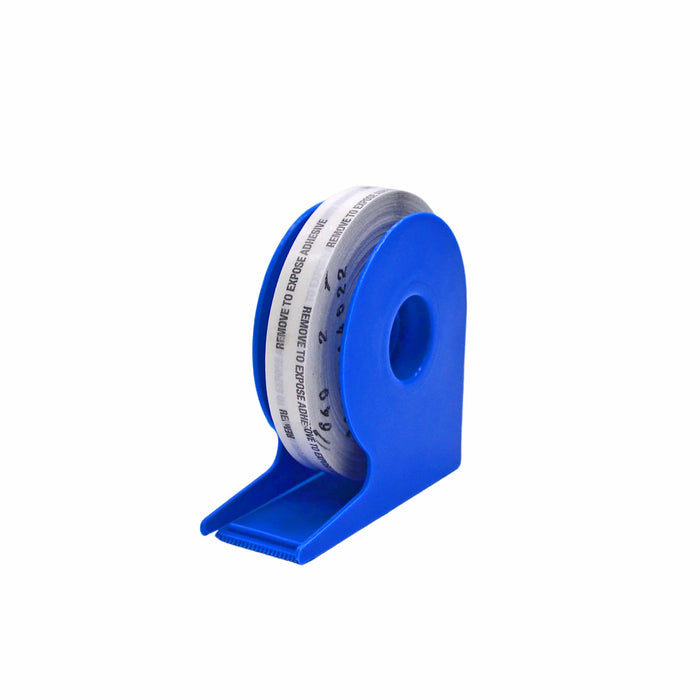

double sided tissue tape in its dispenser
Request a FREE Sample

$319.80 - $372.19
$319.80

10 unit(s)

Unit Price:

$319.80 - $372.19
$319.80
Size: 1/2 inch
Quantity: Case
SKU: WOD PTT-EL-GSO-00500-10-3000-CLE

$319.80 - $372.19
$319.80

10 unit(s)

Unit Price:

$319.80 - $372.19
$319.80
SKU: WOD PTT-EL-GSO-00500-10-3000-CLE

Specifications for this item

Product Code PTT-EL-GSO-PA Elogation N/A
Material Unsupported Film Certification N/A
Adhesive Rubber Low Temperature 0 F
Thickness 1 Mil High Temperature 140 F
Length 3000 Feet Core 3 inch
Adhesion 105 oz/in Adhesive Side Double Sided
Tensile Strenght N/A
Product Code PTT-EL-GSO-PA
Material Unsupported Film
Adhesive Rubber
Thickness 1 Mil
Length 3000 Feet
Adhesion 105 oz/in
Tensile Strenght N/A
Elogation N/A
Certification N/A
Low Temperature 0 F
High Temperature 140 F
Core 3 inch
Adhesive Side Double Sided
Request a FREE Sample

Reverse Wound Permanent Transfer Tape with Extended Liner (Glue-Side Out)

WOD PTT-EL-GSO is a high-performance, reverse-wound permanent transfer tape featuring an extended liner for easy handling and application. This clear, unsupported synthetic rubber adhesive is supplied on a 42# silicone-coated Kraft release liner printed with “TO EXPOSE ADHESIVE REMOVE LINER” for user-friendly removal. The liner includes a 3/32” finger-lift edge on each side, making it quick to peel and apply—perfect for high-volume workflows.

The adhesive provides strong initial tack, and high ultimate adhesion, and will not bleed through paper stock. Available in widths of ½”, ¾”, and 1”, with the adhesive centered on the release liner.

Product Features

  • Reverse wound (adhesive on the outside of the roll)
  • Extended liner with dry edge for quick liner removal
  • Clear removable adhesive system
  • Excellent adhesion to paper, plastic, and metal
  • Easy-to-use design ideal for end-user applications

Typical Applications

  • Point-of-purchase displays and signage
  • Envelope sealing and direct mail
  • Paper-to-paper bonding (signs, posters, labels)
  • Web splicing in high-speed presses
  • Business forms and strip tape applications
  • Collators and finishing equipment

Technical Specifications

  • Adhesive: Synthetic rubber
  • Carrier: None (transfer tape)
  • Release Liner: 42# silicone-coated Kraft paper with finger-lift edge
  • Adhesive Thickness: 1 mil
  • Adhesion to Steel: 105 oz/in
  • Loop Tack: 126 oz/in
  • Shear Strength (1000g): 48+ hours
  • Service Temperature Range: 0°F to 140°F
  • Core Diameter: 3”

Additional Notes

  • GSO = Glue Side Out (reverse wound for machine applications)
  • Roll widths: ½”, ¾”, and 1”, with centered adhesive
  • Manufacturer specs; not independently verified
