Striped Reflective Tape, 50 yards | RTCS5 (Made in USA)

by WOD Tape

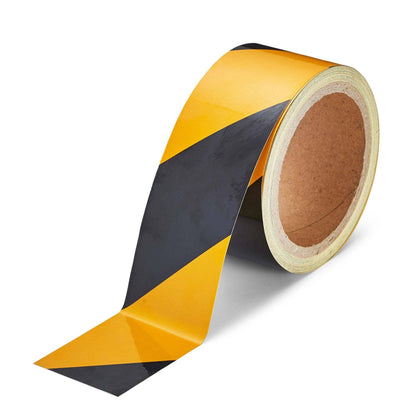

close up of a roll of black and yellow Striped Retro Reflective Tape for Safety Signage - 3 inch
Request a FREE Sample

$45.71 - $2,676.96
$2,040.48
$45.71

1 unit(s)

Unit Price:

$45.71 - $2,059.20
$45.71
Size: 3/4 inch
Color: Black & Yellow
Quantity: Roll
SKU: WOD RTCS5-00750-1-50-BY

$45.71 - $2,676.96
$2,040.48
$45.71

1 unit(s)

Unit Price:

$45.71 - $2,059.20
$45.71
SKU: WOD RTCS5-00750-1-50-BY

Specifications for this item

Product Code RTCS5-PA Elogation N/A
Material Polyester Certification LS-300C (Reflectivity 1, Class 1) and FP-85 (Type II)
Adhesive Acrylic Low Temperature '-70 F
Thickness 6.8 Mil High Temperature 160 F
Length 10 Yards Core 3 inch
Adhesion 70 oz/in Adhesive Side Single Sided
Tensile Strenght 11 lbs/in
Product Code RTCS5-PA
Material Polyester
Adhesive Acrylic
Thickness 6.8 Mil
Length 10 Yards
Adhesion 70 oz/in
Tensile Strenght 11 lbs/in
Elogation N/A
Certification LS-300C (Reflectivity 1, Class 1) and FP-85 (Type II)
Low Temperature '-70 F
High Temperature 160 F
Core 3 inch
Adhesive Side Single Sided
Request a FREE Sample

This black and yellow striped reflective tape is primarily designed for high-visibility in nighttime applications. It features an enclosed lens retroreflective urethane film coated with a permanent acrylic adhesive, wound on a 5 mil White polyethylene coated paper release liner. Consists of highly reflective powder (glass beads) that reflects light back to the source.

WOD RTCS5 Application surface should be flat (not curved or tubular). Also, it is not designed to adhere to unpainted stainless steel surfaces. Stripe Reflective Tape is used for safety applications and is primarily designed for permanent and temporary traffic signage. It is a striped polyester/vinyl tape coated with an acrylic adhesive.

Use to help prevent accidental damage to shelves/racks, loading docks and warehouse poles. Diagonal stripes on the tape are approximately 2-7/8" long (measured along the side edge of the roll). Rolls typically come with a yellow protective wrapping around them for shipping. The adhesive has a dwell time of 24 hours, but reaches 75% of its adhesiveness after 15 minutes

Tape is Available in 2 Vibrant Colors

Red/White - Black/Yellow

Product Applications

  • For work zone devices and non-critical signs where retroreflection is necessary
  • For permanent and temporary traffic signage
  • For Trade show booths, Crafts, Displays and pictures, Nameplates, Interchangeable graphics, Presentation boards

Note

Photos of RTCS5 are taken with a flash camera in order to show the reflectivity of the tape; the colors of the tape will be much darker if a high intensity light source (like the flash from a camera or car headlights) are not being directed at the tape.

Technical Properties

  • Adhesive: Acrylic
  • Carrier/Backing: polyester/vinyl
  • Release Liner: poly-coated yellow Kraft paper
  • Thickness: 5 mils (carrier, adhesive)
  • Adhesion: 50 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 10 pounds per inch (longitudinal)
  • Application Temperature: 41°F (minimum)
  • Service/Operating Temperature: 41°F to 176°F
  • Specification Met: Federal specifications LS-300C (Reflectivity 1, Class 1) and FP-85 (Type II)
  • Core: 3" Diameter

Additional Information

Note: Specifications are those given by manufacturers and are not tested for accuracy.

Specifications for this item

Product Code RTCS5-PA Elogation N/A
Material Polyester Certification LS-300C (Reflectivity 1, Class 1) and FP-85 (Type II)
Adhesive Acrylic Low Temperature '-70 F
Thickness 6.8 Mil High Temperature 160 F
Length 10 Yards Core 3 inch
Adhesion 70 oz/in Adhesive Side Single Sided
Tensile Strenght 11 lbs/in
Product Code RTCS5-PA
Material Polyester
Adhesive Acrylic
Thickness 6.8 Mil
Length 10 Yards
Adhesion 70 oz/in
Tensile Strenght 11 lbs/in
Elogation N/A
Certification LS-300C (Reflectivity 1, Class 1) and FP-85 (Type II)
Low Temperature '-70 F
High Temperature 160 F
Core 3 inch
Adhesive Side Single Sided
