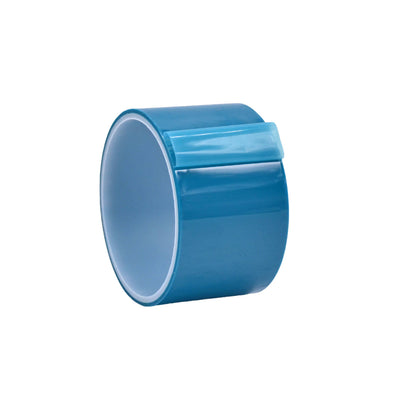

Polyester Tape, 3 Mil - Silicone Adhesive - 72 yards, High Temp. Resistant for Masking or Holding Application, PFT30BS

Polyester Tape, 3 Mil - Silicone Adhesive - 72 yards, High Temp. Resistant for Masking or Holding Application, PFT30BS

by WOD Tape
$3.48 - $448.80
$3.48

(0 / Rolls Per Case)

$3.48 - $448.80
$3.48
Size: 1/4 inch

Have questions about this product ?

+1 786 565 9858

$3.48 - $448.80
$3.48

(0 / Rolls Per Case)

$3.48 - $448.80
$3.48

Specifications for this item

Product Code PFT30BS-PAElogation 0.9
Material PolyesterCertification N/A
Adhesive Silicone Low Temperature N/A
Thickness 3 Mil High Temperature 220 F
Length 72 Yards Core 3 inch
Adhesion 30 oz/inAdhesive Side Single Sided
Tensile Strenght 25 lbs/in
Product Code PFT30BS-PA
Material Polyester
Adhesive Silicone
Thickness 3 Mil
Length 72 Yards
Adhesion 30 oz/in
Tensile Strenght 25 lbs/in
Elogation 0.9
Certification N/A
Low Temperature N/A
High Temperature 220 F
Core 3 inch
Adhesive Side Single Sided

Polyester Splicing & Printed Circuit Board Tape

Product Description

WOD PFT30BS is a 1 mil polyester film with 2 mils of silicone adhesive. Resists fumes and chemicals, and leaves minimum residue on removal. Allows visibility of circuitry after masking. Film will not break or split during application or removal. A protective tape, designed to perform well in all phases of masking operations during printed circuit board production. Industry standard plater’s tape. Protects surfaces from splashes and chemical fumes in tin/ lead stripping and gold tab plating.

Product Applications

  • Used for splicing silicone coated paper and films
  • Used as an outer wrap on coils, capacitors, motors, and transformers
  • Masking in electroplating, anodizing, and PC boards.

Technical Properties

  • Adhesive: Silicone
  • Carrier/Backing: polyester (PET) film
  • Thickness: 3 mils (carrier, adhesive)
  • Adhesion: 30 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 25 pounds per inch (longitudinal)
  • Service/Operating Temperature: Up to 220°C (350°F) (for 30 min.)
  • Elongation: 90%
  • Core: 3" Diameter

Additional Information

Alternative to: Ideal 9190; Scapa 581; Permacel P-377; St. Gobain M741; 3M 8951.

Note: Specifications are those given by manufacturers and are not tested for accuracy.
