Heat-Resistant Fiberglass Tape - 36 yards | GCAFT87

by WOD Tape

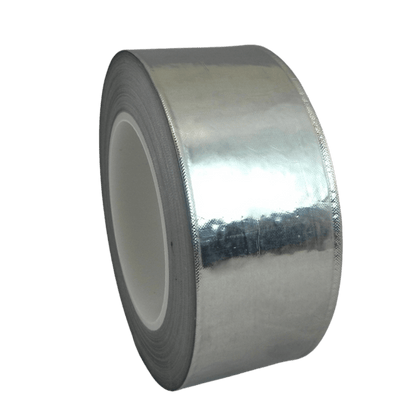

close up aluminum fiberglass tape roll
Request a FREE Sample

$14.33 - $3,577.52
$1,555.39
$14.33

1 unit(s)

Unit Price:

$14.33 - $2,751.94
$14.33
Size: 1/2 inch
Quantity: Roll
SKU: WOD GCAFT87-00500-1-36-SIL

$14.33 - $3,577.52
$1,555.39
$14.33

1 unit(s)

Unit Price:

$14.33 - $2,751.94
$14.33
SKU: WOD GCAFT87-00500-1-36-SIL

Specifications for this item

Product Code GCAFT87-PA Elogation 0.11
Material Fiberglass Cloth with Aluminum Foil Certification T-MIL 83284, ASTM D1000, ASTM 149, JIS Z0237
Adhesive Silicone Low Temperature '-94 F
Thickness 8.7 Mil High Temperature 500 F
Length 36 Yards Core 3 inch
Adhesion 43 oz/in Adhesive Side Single Sided
Tensile Strenght 72 lbs/in
Product Code GCAFT87-PA
Material Fiberglass Cloth with Aluminum Foil
Adhesive Silicone
Thickness 8.7 Mil
Length 36 Yards
Adhesion 43 oz/in
Tensile Strenght 72 lbs/in
Elogation 0.11
Certification T-MIL 83284, ASTM D1000, ASTM 149, JIS Z0237
Low Temperature '-94 F
High Temperature 500 F
Core 3 inch
Adhesive Side Single Sided
Request a FREE Sample

Industrial Grade High Temperature Aluminum Foil Glass Cloth Tape


[WOD] High Temp Glass Cloth Tape(GCAFT87) is a thin tape that combines glass cloth with a laminate of aluminum foil. It provides high strength and reflectivity with excellent flexibility. The fiberglass cloth side is coated with a transparent, high temperature resistant silicone adhesive. This product will withstand moderate grit blasting, is non-corrosive, and flame retardant (will not burn under open flame / extreme temperature exposure).

[WOD] Aluminum Foil Fiberglass Cloth Tape(GCAFT87) can be used as a masking tape in plasma spray applications, seaming and repair of heat and flame barrier curtains, securing thermal insulation on heating and ventilation ducts, protecting and shielding various missile and aircraft components such as control cables, harnesses and fuel lines. It prevents build-up of liquid metal on surfaces that must be protected.

Applications:

  • Protect fuel lines, wiring harnesses, and components.
  • Primarily used in aerospace and critical applications. Extremely high temperature tape.
  • Bundle wire harnesses and help protect sensitive cables and flexible tubes from heat, flame sources and wear
  • For use as a protective wrap for heat sensitive cables and other instruments exposed to movement and vibration in the automotive industry
  • Heat reflective wrap over insulation cables, instruments or other high temperature sensitive materials
  • Used to protect the air inlet sensor wires
  • Used to cover some built-in holes in a grill lid

Technical Properties:

  • Adhesive: Silicone
  • Carrier/Backing: Aluminum foil, fiberglass cloth
  • Thickness: 8.7 mils (carrier, adhesive)
  • Adhesion: 43 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 72 pounds per inch (longitudinal)
  • Elongation: 11%
  • Specification Met: T-MIL 83284, ASTM D1000, ASTM 149, JIS Z0237, FAR 25.853, meets EU NO.1907/2006 REACH requirement
  • Service/Operating Temperature: -94 F to 500 F
  • Core: 3" Diameter


Alternative to: TLC 955; 3M 363 & 3633; Permacel P-100; Scapa 290; Dewal 407; St. Gobain/Furon 2925-7; Bondtec P727.
Note: Specifications are those given by manufacturers and are not tested for accuracy.

Specifications for this item

Product Code GCAFT87-PA Elogation 0.11
Material Fiberglass Cloth with Aluminum Foil Certification T-MIL 83284, ASTM D1000, ASTM 149, JIS Z0237
Adhesive Silicone Low Temperature '-94 F
Thickness 8.7 Mil High Temperature 500 F
Length 36 Yards Core 3 inch
Adhesion 43 oz/in Adhesive Side Single Sided
Tensile Strenght 72 lbs/in
Product Code GCAFT87-PA
Material Fiberglass Cloth with Aluminum Foil
Adhesive Silicone
Thickness 8.7 Mil
Length 36 Yards
Adhesion 43 oz/in
Tensile Strenght 72 lbs/in
Elogation 0.11
Certification T-MIL 83284, ASTM D1000, ASTM 149, JIS Z0237
Low Temperature '-94 F
High Temperature 500 F
Core 3 inch
Adhesive Side Single Sided
