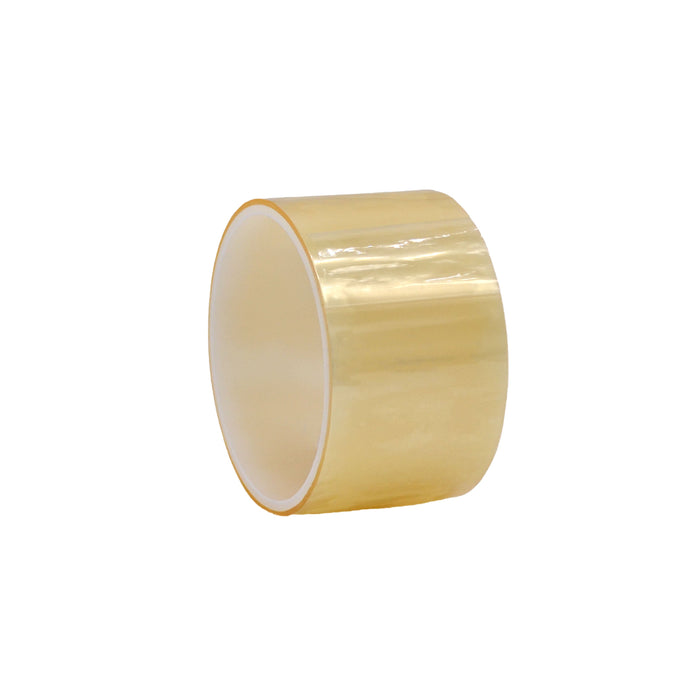

Polyester Tape, 2.5 Mil - Silicone Adhesive - 72 yards, High Temp. Resistant for Masking or Holding Application, PFT25CS
Request A Sample

Specifications for this item

Product Code PFT25CS-PAElogation 1
Material PolyesterCertification UL510 Class B
Adhesive Silicone Low Temperature '-100 F
Thickness 2.5 Mil High Temperature 350 F
Length 72 Yards Core 3 inch
Adhesion 27 oz/inAdhesive Side Single Sided
Tensile Strenght 25 lbs/in
Product Code PFT25CS-PA
Material Polyester
Adhesive Silicone
Thickness 2.5 Mil
Length 72 Yards
Adhesion 27 oz/in
Tensile Strenght 25 lbs/in
Elogation 1
Certification UL510 Class B
Low Temperature '-100 F
High Temperature 350 F
Core 3 inch
Adhesive Side Single Sided

Polyester Tape, 2.5 Mil - Silicone Adhesive - 72 yards, High Temp. Resistant for Masking or Holding Application, PFT25CS

by WOD Tape
$3.51 - $388.80
$3.51

Roll Price:

$3.51 - $388.80
$3.51
Size: 1/4 inch
Quantity: Roll

Have questions about this product?

+1 786 565 9858

$3.51 - $388.80
$3.51

Roll Price:

$3.51 - $388.80
$3.51

Specifications for this item

Product Code PFT25CS-PAElogation 1
Material PolyesterCertification UL510 Class B
Adhesive Silicone Low Temperature '-100 F
Thickness 2.5 Mil High Temperature 350 F
Length 72 Yards Core 3 inch
Adhesion 27 oz/inAdhesive Side Single Sided
Tensile Strenght 25 lbs/in
Product Code PFT25CS-PA
Material Polyester
Adhesive Silicone
Thickness 2.5 Mil
Length 72 Yards
Adhesion 27 oz/in
Tensile Strenght 25 lbs/in
Elogation 1
Certification UL510 Class B
Low Temperature '-100 F
High Temperature 350 F
Core 3 inch
Adhesive Side Single Sided

Polyester Splicing & Printed Circuit Board Tape

Product Description

WOD PFT25CS is a 1 mil polyester film with 1.5 mils of electrical grade silicone adhesive. Designed to be fully stable electrically and mechanically at operating temperatures up to 350°F. The adhesive is cured to provide maximum resistance to chemicals and leaves no residue during masking or holding applications. Excellent resistance to abrasives, acids, oils, aging, staining, and water immersion. Used for splicing silicone coated paper and films. Also used as outer wrap on coils, capacitors, motors, and transformers and for masking in electroplating, anodizing, and PC boards.

Product Applications

  • Used for splicing silicone coated paper and films
  • Used as outer wrap on coils, capacitors, motors, and transformers
  • Masking in electroplating, anodizing, and PC boards.

Technical Properties

  • Adhesive: Silicone
  • Carrier/Backing: polyester (PET) film
  • Thickness: 2.5 mils (carrier, adhesive)
  • Adhesion: 27 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 25 pounds per inch (longitudinal)
  • Dielectric Strength: 5,500 volts
  • Service/Operating Temperature: -100°F to 350°F
  • Specification Met: UL510 Class B (130°C / 266°F)
  • Electrolytic corrosion factor: 1.10
  • Elongation: 100%
  • Core: 3" Diameter

Additional Information

Alternative to: TLC CT929; Permacel P-904; Saint Gobain M52; Bondtec 289; Specialty Tape S945.

Note: Specifications are those given by manufacturers and are not tested for accuracy.
