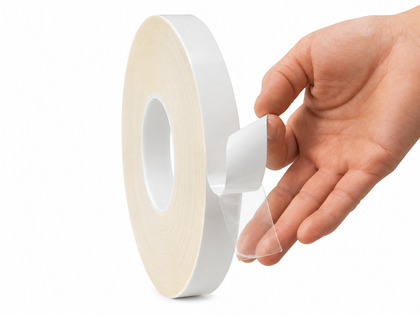

WOD Double Sided Ultra High Bond Acrylic Transfer Tape, Clear - 36 yards, For Window Fabrication Standard and High Impact, DCATUHB

Original price $34.33 - Original price $2,506.67
Original price
$34.33 - $2,506.67
Current price $34.33
Size: 1/4 inch
Thickness: 10 mil
Original price $34.33 - Original price $2,506.67
Original price
$34.33 - $2,506.67
Current price $34.33

Specifications for this item

Product Code DCATUHB-PAElogation 10.0
Material Solid AcrylicCertification N/A
Adhesive Acrylic Low Temperature 0 F
Thickness 10 Mil High Temperature N/A F
Length 60 Yards Core 3 inch
Adhesion 160 oz/inAdhesive Side Double Sided
Tensile Strenght 150 lbs/in
Product Code DCATUHB-PA
Material Solid Acrylic
Adhesive Acrylic
Thickness 10 Mil
Length 60 Yards
Adhesion 160 oz/in
Tensile Strenght 150 lbs/in
Elogation 10.0
Certification N/A
Low Temperature 0 F
High Temperature N/A F
Core 3 inch
Adhesive Side Double Sided

Double Sided Clear Ultra High Bond Transfer Tape

Product Description

WOD DCATUHB10 Ultra High Bond Double Coated Transfer Tape is constructed of a clear foamed acrylic system which has excellent all around bonding properties which establishes exceptional holding power and long-lasting adhesion for fast, strong results. The tape is ideal for structural bonding applications to mount/fix car side molding and emblems. Used as a mounting tape in the illuminated sign industry, for fabricating road signs, joining of metals and plastic trims in furniture construction and architectural applications. The pressure sensitive acrylic composition has very good tack; has excellent adhesion to a variety of surfaces; and has high shear strength performance. Tape is carried on a white, release coated polyethylene liner that is easily removed. It conforms well to a variety of both indoor and outdoor applications and is chemical, UV and solvent resistant.

WOD DCATUHB10 Tape will bond to most surfaces including many plastics, composites, sealed woods and metals; however thorough evaluation is recommended when bonding to low energy surface material such as Polyethylene, Polypropylene, silicones and Teflon. For lower energy surfaces may need to use an adhesive promoter/primer such as IPA (isopropanol) on the substrate prior to application.

WOD Acrylic Transfer Tape DCATUHB10, system has been skillfully engineered to provide a strong, moistureproof bond between various substrates providing a balance of conformability and strength, commonly used for the attachment of automotive exterior trim parts such as body side moldings. The acrylic transfer core has unique viscoelastic properties that allow it to elongate and relax when put under a load, thereby minimizing stress on the adhesive bond line. This tape has a liner side adhesive for bonding to automotive paint surfaces, and a non-liner side adhesive for bonding to exterior trim parts. Since product performance will depend on actual conditions within a specific application, it is essential that the user evaluate the product to determine whether it is fit for a particular material purpose and suitable for the user's method of application. WOD UHB10 Tape can withstand the heat of Dubai to the cold of Canada. The unique acrylic chemistry is extremely durable and resistant to change over time, making this a long-lasting and powerful tape you can trust. It is specifically designed for good adhesion to metals, glass and other medium to high surface energy materials. This trusted and reliable tape offers a consistent bond, outstanding durability and excellent solvent and moisture resistance. WOD stands by all of its products and is there to provide you with design guidance and technical support when you need it.

Application Tips

  • After removing release liner, be careful not to contaminate acrylic adhesive. Immediately bond tape to surface without trapping air between the tape and the surface.
  • Application pressure should be a minimum of 15 pounds per inch of tape width to achieve maximum bond strength.
  • Dwell time (time that tape must be in contact with both surfaces before it reaches maximum adhesion) is 1 to 24 hours.

Product Applications

  • Commonly used in applications to join transparent material or where clear or colorless tape is preferred
  • Used in attachment of dissimilar surfaces.
  • Fabrication of bullet proof products.
  • Used for auto and truck trim attachment; in aviation, marine, electronics, furniture, signage & appliance industries.
  • For window fabrication - standard and high impact resistant
  • Used as a mounting tape in the illuminated sign industry, for fabricating road signs, joining of metals and plastic trims in furniture construction and architectural applications.
  • Used for Structural and general bonding including body panels, emblems, illuminated displays and signage
  • Provides solutions such as industrial joining and metal fabrication
  • Replacing rivets, spot welds, liquid adhesives and other permanent fasteners
  • For bonding/seaming metal in electrical panels and HVAC units
  • Bonding flexible printed circuits (FPC) to aluminum stiffener or heat sinks
  • Commonly used for attaching components to exterior surfaces of aircraft; such as scuff strips and lightening protection antennas

Technical Properties

  • Adhesive: Ultra high bond acrylic
  • Carrier/Backing: Transfer acrylic
  • Release Liner: White polyethylene film
  • Thickness: 10 mils (carrier, adhesive)
  • Adhesion: 160 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 150 pounds per inch (longitudinal)
  • Service/Operating Temperature: -30°F to 200°F
  • Dynamic Shear Strength: 60 pounds per square inch
  • Elongation: 1000%
  • Core: 3" Diameter

Additional Information

Alternative to: 3M 9473; ADCO AT-1010-457A; Hi-Bond VST-4025C.

Note: Specifications are those given by manufacturers and are not tested for accuracy.
